RME HDSPe AIO

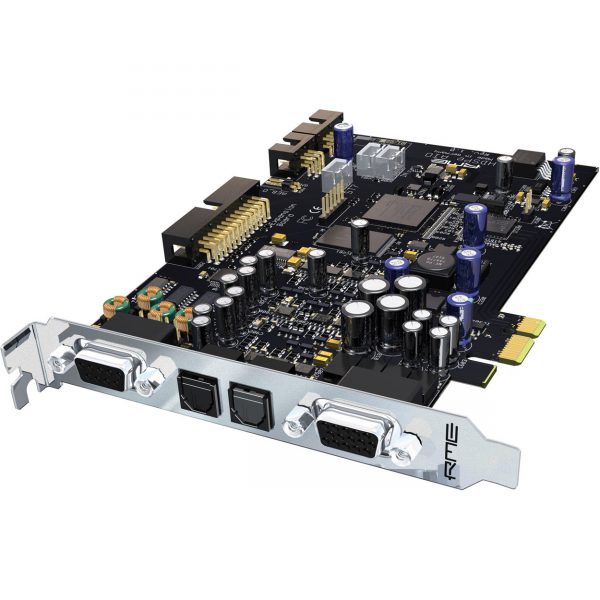

The RME HDSPe AIO 38-channel 192 kHz PCI Express Audio Interface is an All-In-One solution for every possible music application.

Compare

The RME HDSPe AIO 38-channel 192 kHz PCI Express Audio Interface is an All-In-One solution for every possible music application. The Advanced-Input-Output interface shines with the latest 192 kHz AD- and DA-converters, with more than 112 dB signal to noise ratio.

All inputs and outputs are simultaneously operational with the RME HDSPe AIO, even SPDIF (phono) and AES/EBU (XLR). Additional hi-quality analog inputs and outputs can easily be added by favourably priced expansion boards.

TotalMix, the unsurpassed flexible routing mixer and SteadyClock, RME’s sensational clock technology with maximum jitter suppression of external clock signals, are also featured. HDSPe AIO also supports the optional TCO for synchronization to timecode (LTC/video). All this combines into a professional ‘soundcard’.

The RME HDSPe AIO 38-channel 192 kHz PCI Express Audio Interface Main Features Include:

Balanced stereo analog in- and output, 24-bit/192kHz, > 112 dB SNR
Optional analog expansion boards with 4 balanced in- or outputs
All analog I/Os capable of 192 kHz, constant number of available channels
1 ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
1 SPDIF digital I/O, 192 kHz-capable
1 AES/EBU digital I/O, 192 kHz-capable
1 Stereo headphone output, separate DA-converter and playback device
So up to 18 inputs and 20 outputs can be used simultaneously!
1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
DIGICheck, RME’s unique metering- and analysing tool
TotalMix: 760 channel Mixer with 42 bit internal resolution
Native PCI Express – no PCI to PCI Express bridge used
The HDSPe AIO ships in a basic version with analog RCA/phono breakout cables (headphone: TRS jack). Therefore all analog I/Os are unbalanced. An analog XLR breakout cable is available as option (headphone: Neutrik TRS locking jack), turning analog into balanced mode.
HDSPe AIO includes SteadyClock (TM), RME’s own clock technology, combining professional features like maximum jitter suppression at full varipitch capabilities and software controlled sample rates.
Included software: DIGICheck for Windows: Spectral Analyser, professional level meter for 2, 8, or 20 channels, Vector Audio Scope, various other audio analysis tools.
Drivers: Windows 2000/XP/Vista/64 (full ASIO multi-client operation of WDM, GSIF 2.0 and ASIO 2.0), Mac OS X Intel (Core Audio and Core MIDI).
