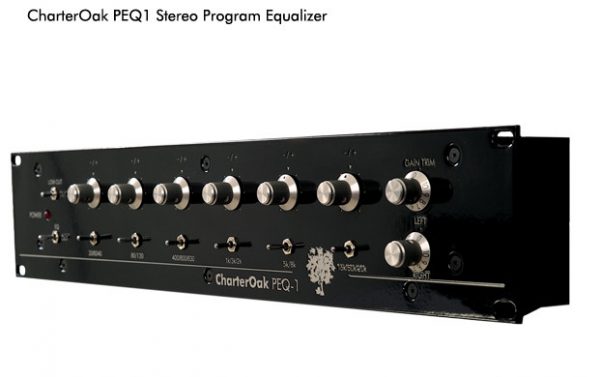

CharterOak PEQ-1

The CharterOak PEQ-1 is an active equalizer that employs the very best operational amplifiers, capacitors, resistors, input transformers, and output transformers that are available today.

Specifications
Frequency Response 10Hz-75kHz (+0.2 -0.6dB EQ out ; +0.3 -0.8dB EQ in).
Total Harmonic Distortion (ref. 6V): 0.084%.
Cross Talk -95dB @ 10kHz, -90dB @ 20kHz
Signal to Noise -100dB referenced to +10dBm
Maximum Output +24dBm
Input Impedance 600 Ohms (transformer balanced)
Output Impedance 600 Ohms (transformer balanced)
Dimensions Standard 2RU / Length 19” Height 3.5”
Power Requirements 110-115VAC/220-230VAC
