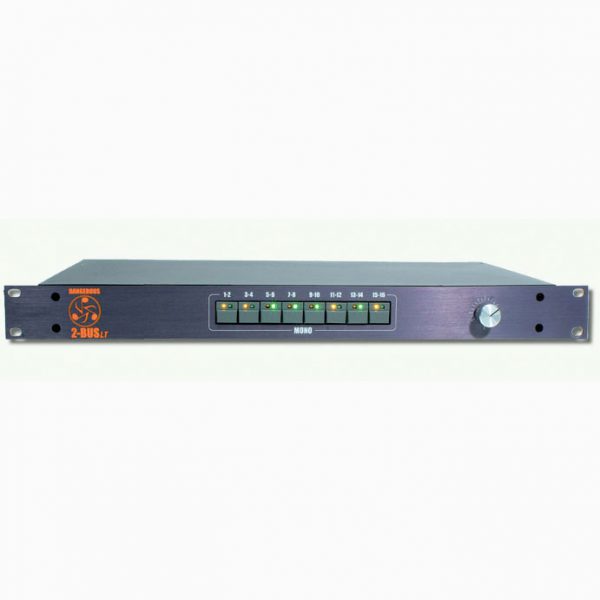

The 2-BUS LT is a 16×2 summing amplifier designed to help users of digital audio workstations (DAW’s) better mix performance through the use of the existing equipment in their studios. As engineers and musicians, the Dangerous team and their colleagues have noted that while digital audio workstations offer unprecedented flexibility in multitrack recording and editing, the resulting mix from these systems generally doesn’t equal those of high-end analog recording consoles in terms of sound quality and preservation of spatial detail.
The Essential Tool for Serious Digital Audio Mixing
It Will Change the Way you Mix
More Punch and Detail
For Pro and Project Studios
Integrate your analog gear into the studio of the future
Dangerous Music’s 2-BUS LT allows the full potential of your digital audio workstation to be realized — audibly. It sums 16 channels of audio to a stereo pair in a high quality analog environment while occupying only one rack space.
The 2-BUS LT delivers quality you would expect from a full-scale analog console, but from a compact unit that was specifically designed for the home, project, and professional digital studio.
Frequency Response: 1 Hz-100 kHz within 0.1 dB
Total Harmonic Distortion: 0.005% in audio band
Intermodulation Distortion: 0.006% IMD60 4:1
Crosstalk @ 1 kHz: -97 dB
Noise floor: -83 dBu total energy in audio band
Max level: +27 dBu
Nominal operating level: +4 dBu
Input impedance: 25 kohm balanced
Output impedance: 50 ohms balanced (600 ohm drive capable)
Power consumption: 25 watts
Warranty: 2 years parts and labor, subject to inspection. Does not include damage incurred through abusive operation or modifications/attempted repair by unauthorized technicians.
