DAV Electronics BG1u

Categories: ,

2 classic DAV pre-amps, 1 D.I input, 2 balanced outputs, 2 unbalanced outputs, phase/pad/HPF/48v on each channel.

Compare

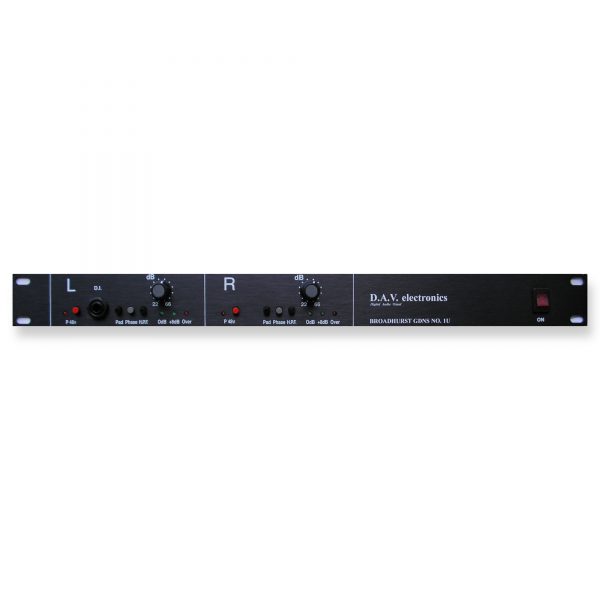

The DAV Electronics BG1u Dual Channel Mic-Pre/DI has 2 classic DAV pre-amps as used in the original Decca studios designs, the same design as in the successful BG1
1 D.I input, 2 balanced outputs, 2 unbalanced outputs, Phase/Pad/HPF/48v on each channel.
Massive gain, low noise and distortion, the pre-amp retains the integrity of the source like nothing else. Hand made in the U.K.

DAV Electronics BG1u Main Features:
Frequency response: 10Hz – 150KHz ± 0.25dB
Decca Heritage Mic gain range: 22dB – 66dB in 4dB steps. [pad in -4dB – 40dB]
Distortion: Less than 0.01% Typ, 0.001% 1KHz @ +20dBu o/p
High pass filter: 68Hz @ 12dB per octave (Switchable bothchannels)Noise: 25 microvolts [-110dB ref+20 dBu.
Bandwidth: 10Hz-18KHz input loaded 150 ohms, 32dB gain
Phase reversal: Both channels (Switchable)48v phantom: Both channels (Switchable)
Level indication: Red LED +18dB – Green LED +8dB – Green LED 0dB26dB pads: Both channels (Switchable)
Clipping level: +29 dBu
D.I. input: Channel 1 High impedance [1.8 Meg Ohms]
Input: XLR x 2, Jack x 1 (DI Input)
Output: XLR x 2 (bal), Jack x 2 (unbal)
D.I. gain range: Channel 1 only -8 > 36dB in 4dB steps
Dimensions: 19″ 1U rack mount. Depth = 150mm
Power Connectors: IEC mains
