Decca Heritage 4 channel mic-pre.
The features of this microphone amplifier consist of low noise and low distortion. It offers switched gain controls for high accuracy level setting, level indication, switchable high pass filters, input pads.

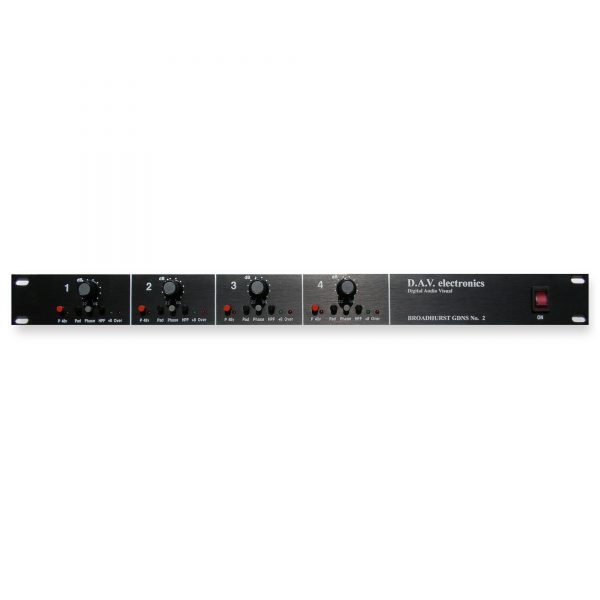

The DAV Electronics BG2 Mic-Pre offers four channels of the BG1 Decca Heritage mic-preamp designed by D.A.V.
Hand-made in the UK It offers switched gain controls for high accuracy level setting, level indication, switchable high pass filters and input pads.
DAV Electronics BG2 Mic-Pre Main Features:
Gain range: 22dB – 66dB in 4dB steps. [pad in -4dB – +40dB]
Frequency response: 10Hz – 150KHz ± 0.25dB
High pass filter: 68Hz @ 12dB per octave
Distortion: Less than 0.01% Typ, 0.001% 1KHz @ +20dBu o/p
Phase reversal: All channels (Switchable) Noise: 25 microvolts [-110dB ref +20 dBu.
Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain].
Level Indication: Red LED +18dBu – Green LED +8dBu – Can be pre-set for your operating level
Clipping level: +29 dBu
48v phantom: All channels (Switchable)
Connectors: IEC mains, XLR’s on rear
26dB pads: All channels (Switchable)
Dimensions: 19″ 1U rack mount.
Depth = 150mm
