DAV Electronics BG501

Categories: ,

The same quality, sonic clean and powerful BG1 pre-amp in an API 500 Series format. Includes DI input.

Compare

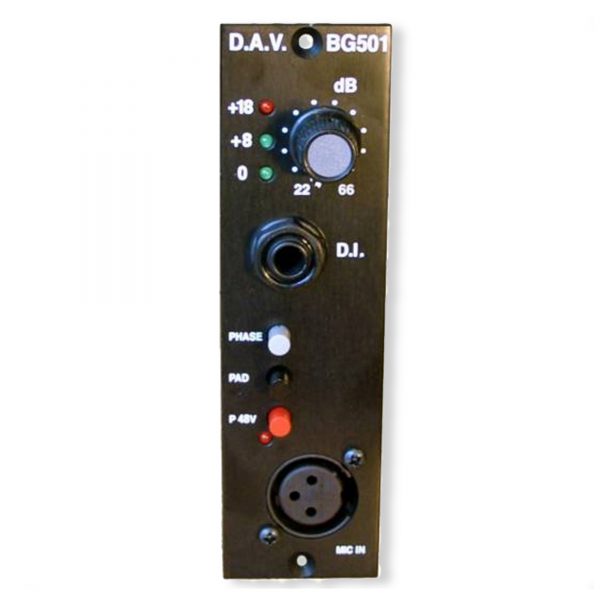

The DAV Electronics BG501 is the same as revered Decca Heritage DAV Electronics BG1 but designed for use in the 500-Series format.
This mic preamp design consist of low noise and low distortion and offers switched gain controls for high accuracy level setting at 4 dB steps. A high impedance) D.I. input with level indication, a 26dB pad (switchable) with phase reversal and 48v phantom supply (switchable) rounds off a very neat, and portable solution.
The same great sound as the Classic BG1 but in a new form factor. Includes DI input
DAV Electronics BG501 Features :
Frequency response: 10Hz – 150KHz ± 0.25dB
Mic gain range: 22dB – 66dB in 4dB steps. [pad in -4dB – 40dB]
Distortion: Less than 0.01% Typ, 0.001% 1KHz @ +20dBu o/p
Phase reversal: Switchable Noise: 25 microvolts [-110dB ref +20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain].
Level indication: Red LED +18dB Green LED +8dB Green LED 0dB
48v phantom: Switchable
Clipping level: +29 dBu
26dB pads: Switchable Connectors: Gold plated PCB plug
Input – XLR x 1, Jack x 1 (DI Input)
D.I. input: High impedance [1.8 Meg Ohms]
Dimensions: A.P.I. 500 series module (Lunchbox)
D.I. gain range: -8 > 36dB in 4dB steps

Brand

DAV Electronics
