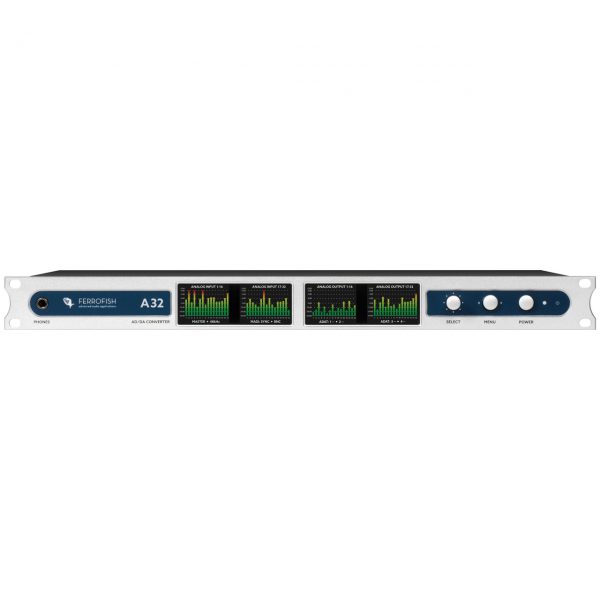

Ferrofish A32 MADI and ADAT AD/DA Converter

The Ferrofish A32 is a 32-in 32-out MADI and ADAT AD/DA converter designed to provide high-quality conversion at an affordable price.
The Ferrofish A32 features a complete redesign of the Analogue-to-digital and digital-to-analogue conversion using Cirrus Logic converters, and many other useful features such as remote control via MIDI, as well as latency-free daisy-chaining of several units together. Thanks to the MADI protocol, up to 64 channels can be transferred via a simple pair of glass fibre cables up to 2 kilometers.
The Ferrofish also offers ADAT integration with four ADAT ports to use all 64 channels if MADI is not a suitable option. One of the ADAT connectors can also be used as optical S/PDIF or ADAT/EBU, and has its own sample rate converter inside to remedy situations where it cannot sync to an external clock.
The analogue section is supported by a powerful analogue amplifier circuit which lets you set the standard levels +4dBu, +13dBu and +20dBu in the analogue domain before reaching the converter, ensuring optimum performance.
The Ferrofish also uses a new visual control concept which not only provides precise level meters of all 64 analogue channels, but also adjusts everything you need. An extensive user interface is also included as well as an onscreen manual. A SHARC DSP chip is also included to take care of the digital audio and uses an 80-bit wide accumulator to ensure that not a bit gets lost.
Ferrofish A32 AD/DA MADI and ADAT Converter Main Features:

32 balanced analogue inputs, 32kHz – 192kHz
32 balanced analogue outputs, 32kHz – 192kHz
Thermal stabilised oscillator with very low jitter and high stability
MADI optical and coaxial
MIDI over MADI
4x ADAT TOSLINK inputs
4x ADAT TOSLINK outputs
SMUX up to 192kHz
BNC Wordclock
MIDI I/O and MIDI over MADI
Headphone /submix output for easy control
4x TFT Screens allow complete control of all levels and settings
One Key Control allows easy control   of all functions
64 analogue channels are visible the same time, peak and level display
No need to study the manual, multi-language help pages guides available
Preset Management
400MHz Sharc DSP processes all 258 audio channels
Extensive routing/mixing possibilities
Individual delay-compensation of all analogue outputs
