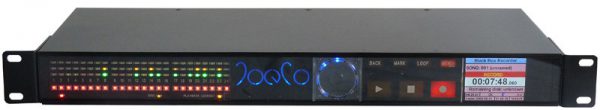

The BLACKBOX BBR64-MADI RECORDER is designed to record and replay up to 64 channels of MADI data and yet still only occupies one unit of rack space!
Based on the award-winning, tried and tested BlackBox Recorder design, the new BLACKBOX BBR64-MADI RECORDER is designed to record and replay up to 64 channels of MADI data and yet still only occupies one unit of rack space! The recorder can capture the full 64 channels at standard sample rates directly to Broadcast WAV files on an external USB2 drive. Double sample rate MADI recording (up to 96kHz) is also accommodated.
The recorder sports both coaxial and optical MADI connections for interfacing with any MADI equipped console or other equipment. Additionally, the BBR64-MADI caters for 56-channel legacy MADI and can record a further 8 channels of analogue (balanced line in) for capturing the audience reaction or general ambience.
The BBR64-MADI will lock to or generate word clock, as well as locking to the received MADI data stream. The MADI input is echoed direct to the output to ease system integration. In contrast with previous models, continuous channel metering on every channel is not provided and there is no internal mixer. Instead, individual channels, or pairs of channels can be monitored on a PFL bus providing both hi-resolution metering and headphone monitoring.
Records up to 24 channels at 24 Bit / 96 kHz. (analogue, AES/EBU and Light pipe versions). BBR64-MADI and BBR64-DANTE record up to 64 channels. (Multiple units can be linked together for higher track counts.)
Records audio in Broadcast WAV format onto a regular USB2 disk drive, USB Flash drive (FAT32 formatted), or SDHC card via USB2 connector. Built-in formatting facility included.
Enables direct import of recorded audio files from the hard drive to any Mac- or PC-based DAW for instant editing and remixing. No file transfer or conversion necessary.
Is simple to operate via a sleek front panel menu-driven user interface and touch sensitive controls.
Is available in six models; analogue: unbalanced and balanced i/o, digital: AES/EBU and Lightpipe – for use with both analogue and digital consoles, MADI and DANTE.
Supports Linear Time Code, MIDI time code and SONY PII (9-pin) control, MIDI Machine Control and AES / SPDIF word clock.
Can attach to the insert points of any live console to provide Virtual Sound Check facilities.
Includes “fail safe” features for secure audio capture such as playback lockout and preventing accidental Stop.
Allows the creation of headphone monitoring mixes, with level and pan on each track (analogue, AES/EBU and Light pipe versions). On MADI and DANTE versions individual channels, or pairs of channels can be monitored on a PFL bus providing both hi-resolution metering and headphone monitoring.
Features a QWERTY keyboard interface and Name Manager for easily creating templates and modifying track or song names.
Offers enhancements for film, TV and broadcast applications including support for 23.98fps time code, improvements to 9-pin support for edit controllers and support for iXML
