Digital small diaphragm condenser microphone comprising the KK 183 omni capsule and KM D digital preamp.

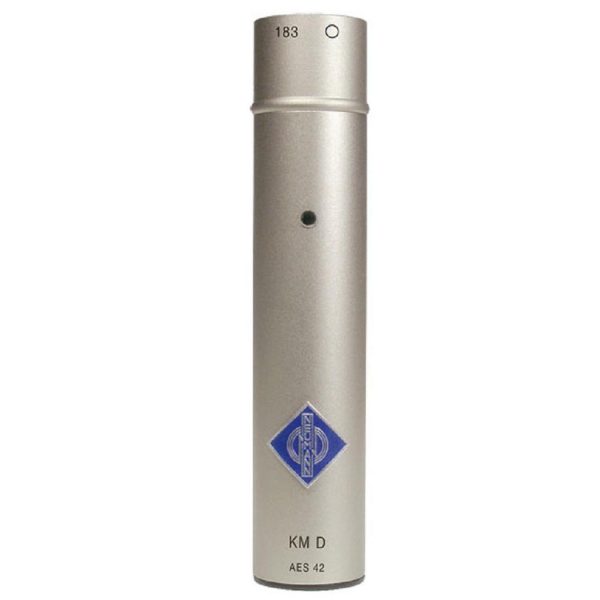

The Neumann KM183 D is a digital small diaphragm condenser microphone comprising the KK 183 omni capsule and KM D digital preamp.
The Neumann KM183 D uses the most up to date electronic components to deliver greatly improved performance with lower self-noise, wider dynamic range and very high electromagnetic interference immunity.
The KM D digital output stage converts the signal from the capsule and sends a 24-bit AES/EBU signal in accordance with the AES 42 standard. The KM D includes an integrated DSP to control digital gain, pre-attenuation (6dB, 12dB or 18dB) and the high-pass filter (0Hz, 40Hz, 80Hz, 160Hz). The DSP also integrates a limiter, compressor, de-essing to prevent from overloading. the audio signal.
The KM183 D is extremely flexible can be used in close miking or diffuse field in AB configurations thanks to its flat frequency response.
Neumann KM183 D Main Features:
Miniature microphone with omni-directional capsule, compatible with the analog miniature microphone system KM A
Set includes windshield and clamp
The legendary Neumann sound in the digital realm. Pure Neumann capsule sound
The satisfaction of recording the uncolored original, with no “bottlenecks” between the capsule and the recording system
The guarantee of having one of the best A/D converters
Anti-clipping processing ensures handling safety, and reduces stress
Reduced time requirements and personnel costs, particularly due to faster post production processing
Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van)
