Versatile pre-amp module for SSL X-Rack Series, with SuperAnalogue technology developed from the XL 9000 K units in the AWS and Duality desks

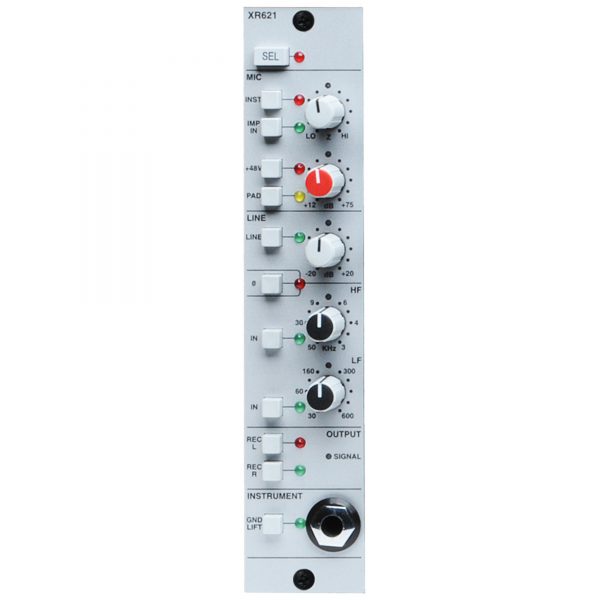

The SSL XLogic X-Rack Mic Amp Module is a versatile pre-amp module for SSL X-Rack Series, with SuperAnalogue technology developed from the XL 9000 K units in the AWS and Duality desks.
When Solid State Logic created the X-Rack Mic Module, they built it using their SuperAnalogue capacitor-less circuitry to give you the outstanding performance you need to feed the optimum signal to the EQ and Dynamics processors in your X-Rack. This pre-amp gives you masses of gain and can cope with a wide variety of input signals.
Ground lift, phase reversal and phantom power all come as standard on the X-Rack preamp Module. With a variable impedance input and a Pad switch you can connect directly from your instrument to the front panel, via a jack socket, while mic connections are through an XLR socket on the rear. It also comes equipped with switchable HF and LF filters. The SSL X-Rack Mic Amp is designed to get the best sound from a wide range of sources and all your chosen selections are clearly marked with LEDs.
Of course, being part of Solid State Logic’s X-Rack SuperAnalogue range means that not only do you get their super-quiet, great perfomance but with the X-Rack Mic Amp Module, you also have access to their Total Recall option and complete compatibility with all the other modules available.
SSL X-Rack Mic Amp Module Overview:
• Mic Pre with 75db gain
• SuperAnalogue circuitry
• Phase Reverse & Phantom Power
• Dedicated Additional XLR Line input
• Front panel Instrument input with ground lift switch
• Independently switched 12dB/Octave HF (Low-Pass) Filter
• Independently switched 18dB/Octave LF (High-Pass) Filter
• Independent routing to L & R Record Bus
