Dreadbox White Line Reflector

Categories: ,

The Dreadbox White Line Reflector is a 1024-stage BBD delay module taken straight out of the Abyss polysynth.

Compare

The Dreadbox White Line Reflector is a 1024-stage BBD delay module taken straight out of the Abyss polysynth.
The Reflector module is perfect for those classic Bucket Brigade sounds including Flangers, Chorus, Echo’s and delays.

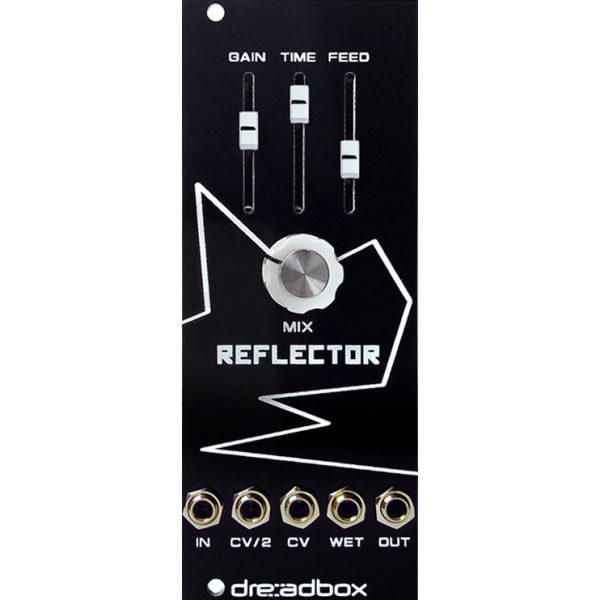

The control layout is quite simple and intuitive, there’s three sliders for controlling the modules gain, the delay line time base and the feedback amount, which at full will put the module into self oscillation. A single pot controls the wet to dry mix ratio.
Inputs and outputs include; audio input, dual CV inputs one that divides the CV input by 2 for optimal modulation capabilities and the second which is a linear response CV input. There’s also a full wet output and a mix output.
A quaint looking module with some serious sound shaping capabilities that comes in at just 10HP.
The main features of the Dreadbox White Line Reflector Module include
1024-stage BBD delay line
Ideal for chorus, flangers, delay and echo sounds
Include dual CV inputs and dual audio outputs
FP-4 Glass Epoxy Front
10HP Wide
