6-channel 500-series enclosure with advanced audio routing capabilities and LCD Screen for control of Fredenstein modules.

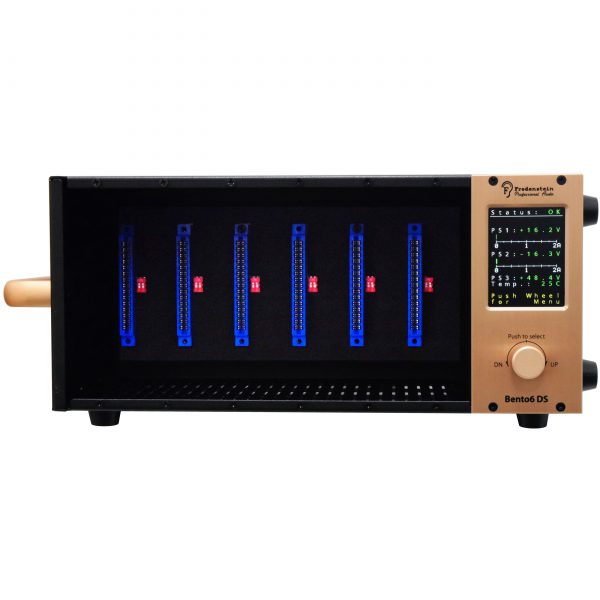

The Fredenstein Bento 6D is a 6-channel 500-series enclosure with advanced audio routing capabilities and LCD Screen for control of Fredenstein modules.
The Fredenstein Bento 6D allows for the daisy-chaining of modules by engaging the switches on the back panel making easy to create your perfect custom channel strip without resorting to complex cabling configurations. A link swtich allows for the linking of two compressors for true stereo operation. A ground lif switch is also included in case of ground loops. In addition the Bento 6D features Aux inputs and outputs for all 10 channels which can be used with certain modules which use this extra port for additional functions such as parallel processing.
The Bento 6D provides a lot of power and will easily feed the most power hungry modules such as valve mic preamps or compressors and uses a universal power supply which means that you can travel anywhere in the world.
The LCD Screen of the Bento 6D lets you monitor the power-supply status of the rack and when use with Fredenstein F6 modules displays their operating parameters for easy recall.
Fredenstein Bento 6D Overview:
Input Voltage: 90V AC to 240V AC, 50 to 60 Hz
Output Voltages: +16V DC 1.6A
-16V DC 1.6A
+48V DC 0.3A
Power Consumption: max 90W
