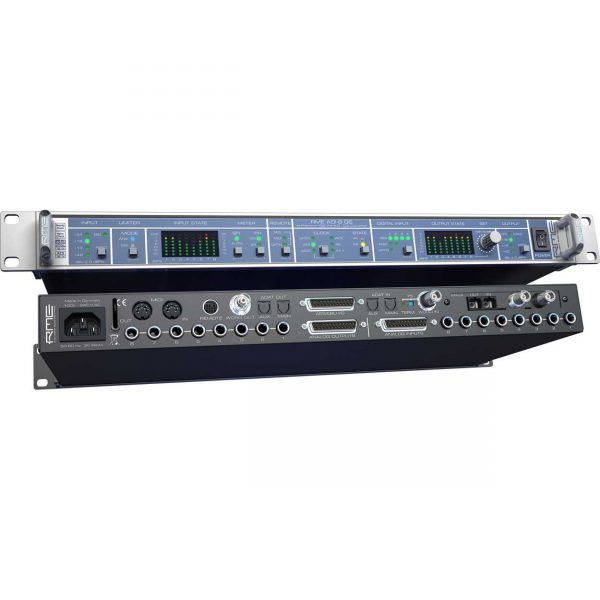

The RME ADI-8 QSM 8-Channel AD/DA Converter Including MADI is an 8-Channel hi-end AD/DA converter with an unrivalled bunch of features.
The RME ADI-8 QSM 8-Channel AD/DA Converter Including MADI is an 8-Channel hi-end AD/DA converter with an unrivalled bunch of features. The device combines excellent analog circuit design with outstanding low latency AD/DA converter chips of the latest generation.
The RME ADI-8 QSM comes with an integrated SteadyClock, the QS offers an AD- and DA-conversion of the highest quality. Analog and digital limiters, 4 hardware reference levels up to +24 dBu, AES/EBU and ADAT I/O (optional MADI I/O) at up to 192 kHz, remote control via MIDI, digital input and output trimming for full level calibration, volume control for all 8 analog outputs, either separately or globally, digital thru-mode, operation over a wide voltage range and many more features make the QSM truely unique.
The RME ADI-8 QSM Main Features Include:
8-Channel AD converter, fully symmetrical design, 117 dBA
8-Channel DA converter, DC-coupled signal path, double balanced output, 120 dBA
Low latency conversion: only 8 samples of delay!
4 x AES/EBU I/O via D-Sub, 8 channels @ 192 kHz
2 x ADAT I/O, 8 channels @ 96 kHz
Digital input/output trim, range 6 dB per I/O
Analog and digital limiter for AD-conversion
16 LED level meters with 7 LEDs each
Included remote control for store/recall, volume and DIM
SyncCheck, unique technology to check clock synchronisation
All settings are stored permanently
Fully remote controllable
