Stereo Analogue to digital converter with soft saturation, self-calibrating circuitry and ultra-stable internal clocking

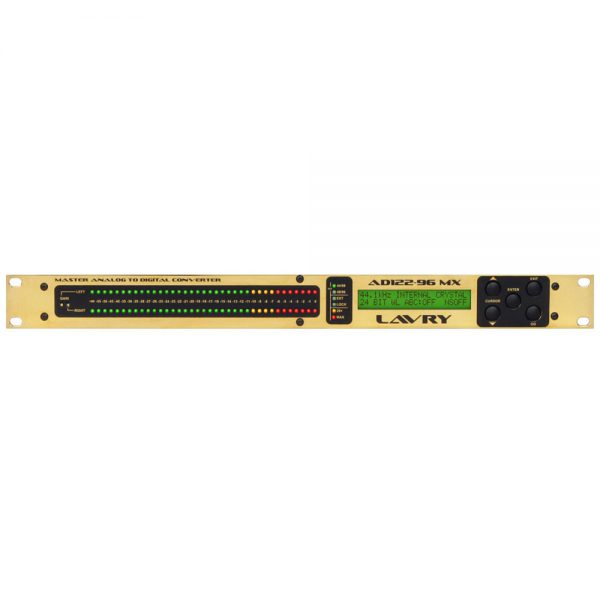

The Lavry AD122-96 MX is a dual channel analogue to digital converter designed to offer ultimate clarity.
The Lavry Gold AD122-96 MX uses unrivalled inter-channel matching all the way down to the lowest signal to preserve spatial placement and stereo image depth. Furthermore it boasts a unique self-calibrating circuitry and ultra-stable internal and external clocking virtually eliminating distortion caused by jitter.
The AD122-96 MX features the same transparency of the previous MkIII and adds an improved clipping handling offering increased musicality even close to 0dB Full Scale. With a noise floor of -127dB between 20Hz and 20kHz and an impressive 0.00005% distortion for signals below -40dBFS, the AD-122-96 MX provides unparalleled performance and stereo image depth.
A Soft saturation function digitally emulates tape saturation for added colouration.
Lavry AD122-96 MX Main Features:
Graceful handling of clipping allows more apparent level without loss of musicality
24 bit conversion at 96kHz, 88.2kHz, 48kHz and 44.1kHz
Unequaled detail and performance
True -127dB noise floor
0.00005% Total Harmonic Distortion + Noise
Lavry’s exclusive αcoustic βit Correction™ for wordlength reduction with dither and noise shaping
Switchable digital soft-knee limiter, +3 or +6dB gain
Precision reference meter bridge
Fully programmable digital test tones for system alignment
AES and word clock external synchronization 40-51kHz, 88.2kHz, 96kHz
Absolute Polarity Inversion
Converts analog signals to a true 24-bit digital audio data stream. Consistently used for many of today’s top recordings, the AD122-96MKIII features -127dB dynamic range (unweighted), providing optimum musical results. FEATURES 96kHz, 88.2kHz, 48kHz and 44.1kHz conversion frequencies Unequalied detail and performance True -127dB noise floor 0.00005% Total Harmonic Distortion + Noise Conversion to 24 bits Built-in Acoustic Bit Correction re-dithering to 16-20 bit formats Switchable digital soft-knee limiter, +3 or +6dB gain Precision reference meter bridge Fully programmable digital test tones for system alignment AES and word clock external synchronization 40-51kHz, 88.2kHz, 96kHz DC removal Absolute Polarity Inversion Multi-converter synchronization
